Learning and recognition

There are two stages in the training process. During the first 20 steps, we iterate the dynamics (1) with the forcing motor signal, and without changing the weights, for the system to reach its stationary dynamics. After this transient time, we activate the learning rule (2). Due to friction between wheels and ground, the actual rotation is slightly different from the command issued. During the whole training process, we check the accuracy of the angular position (we correct the position when the shift is too big). The learning dynamics is lasting $20$ time steps (one time step corresponds to one movement). This training session is not long enough to produce a sustained feedback signal, like in previous simulations. However, the feedback signal from layer 2 to layer 3 is stable enough to determine the motor output of the system when the forcing signal is removed.

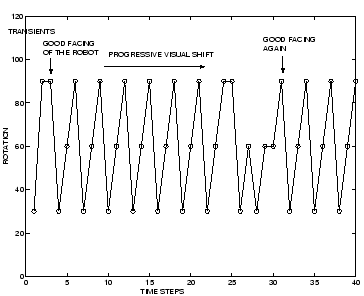

Figure 10: Angular trajectories of the robot. Rotation angle versus time. - a - Example of recalibration after a shift. The first two steps are transients. Then the rotations issued correspond to the learned periodic sequence $(+30^\circ , +60^\circ , +90^\circ )$ in accordance with its associated visual inputs (so that vision and movements are dynamically locked). Due to friction on the ground, the real robot angle (and thus the visual scene) shifts, leading to a progressive mismatch between the visual scene and the movement. One can observe a sudden change in the robot behavior ($t=25$), corresponding to an unlock between the visual flow and the associated movements. Finally, after new transients, the robot finds a good matching and resumes the periodic sequence. - b - After the robot has reached its periodic behavior, the camera is hidden. The lack of visual information rapidly leads the robot to a "chaotic" behavior.

a

b

After this learning process, the resulting system is tested, with dynamics (1). The forcing motor signal is removed, so that the robot now determines its movement according to the feedback signal $\mathbf{F}^{(32)}(t)$. The robot is initially placed in an arbitrary angular direction. Two typical angular ``trajectories'' are reported on Fig.10. After some transients, the robot starts to reproduce the 3-periodic sequence of rotations. This periodic movement occurs as soon as the robot finds a matching correspondence with its visual entries, and remains as long as visual inputs and motor commands match together. In the first experiment (Fig. 10-a-), the reaching of the periodic behavior is followed by a progressive shift in the robot orientation. As a consequence, visual information progressively tends to misfit the learned sequence of visual patterns (as the visual angle is of the order of $60^\circ$, a position misfit of the order of $30^\circ$ corresponds to an "error" of 50% in the visual field). This increasing conflict between movement and vision leads to a sudden change in the robot behavior. What happens is not a take over of one movement over the other. For some time steps the movements performed are not following the sequence anymore, nor correspond to the ones associated with the image. After these new transients, the robot finally finds a matching visual input, triggers the associated movement and resumes again the good sequence. The movement performed by the robot in this conflict state are still $30, 60$ and $90$ degrees rotations. There is no error calculation between the desired rotation and the effective rotation which could lead to other rotation angles. However, erratic rotation and friction allow to reach visual fields that are close enough to a learned one, so that the learned sequence of movements can start again. In the second experiment (Fig. 10-b-)), we just hide the camera after the robot has reached its periodic behavior. The lack of visual information thus produces erratic rotations, and the robot keeps searching for a matching visual input. As we can see, our system can produce two distinct behaviors that both depend on its visual environment and on its actual movement. By analogy, one can interpret movements performed in the context of dynamical systems: the change in behavior is comparable to a phase transition from a cyclic dynamics towards a chaotic dynamics.

• The learned periodic movement corresponds to a task associating visual inputs and motor movements. It is stable for a broad range of visual inputs, including shifted visual inputs.
• The "chaotic" movement can be seen as an exploratory behavior: the search for matching visual input sequences. When there is no possible match (for instance when the scene is hidden, or when the robot is moved to another place), the dynamics remains chaotic.

This preliminary experiment shows that our system can perform reliable sensory-motor associations in a real environment (noise on visual input, visual shifting due to the frictions on the ground...). These associations are based on an on-line learning process, without a priori knowledge of the environment configuration. The secondary dynamical layer allows the fusion of visual and motor information, and is responsible for the stability of the control schemes, and for the dynamical adaptivity in case of strong misfit (the experiment is analogous to the simulation presented on Fig.4). It globally models the coupling between the agent and the environment in a repetitive sensory-motor task. In order to go further in the design of navigation systems, one needs also to learn sensory-motor associations and environment couplings at broader temporal scales;

• In more complex task processing, the memory of previous behaviors may, for instance, constrain the choice of the actual behavior, like in Fig.6 (perseverance).
• Our model needs the repetition of a sensory-motor scheme in order to learn it. It is not supposed to perform ``one shot learning'' (the ability to store a particular event in emergency conditions). However, using the autonomous dynamics, we could allow the system to rest, in order to store and replay (with an inner dynamical feeding) some specific critical or emotional sensory-motor configuration (``mental rehearsal'', see also [34]).
• The question of learning longer sensory-motor schemes is still open, and would need a broader range of axonal delays for individual neurons (see also [19] for a discussion on delays).
• The learning of non periodic behaviors may rely on the emergence of sensory-motor schemes in a non-supervised learning task. Reinforcement learning methods (which relates to the pleasure or the pain associated to some particular events) are currently under experiment on our model, where the learning parameters $\varepsilon^{(pq)}$ is a function of some external reinforcement.
